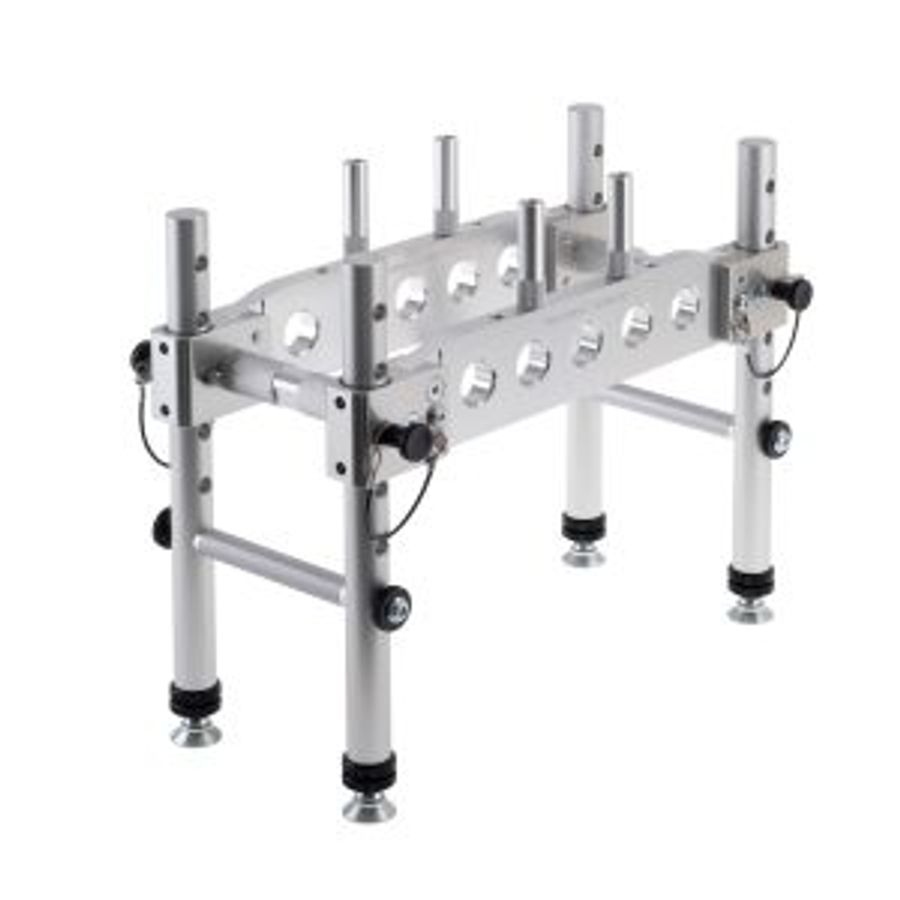

Staht Bridges
Staht Bridges

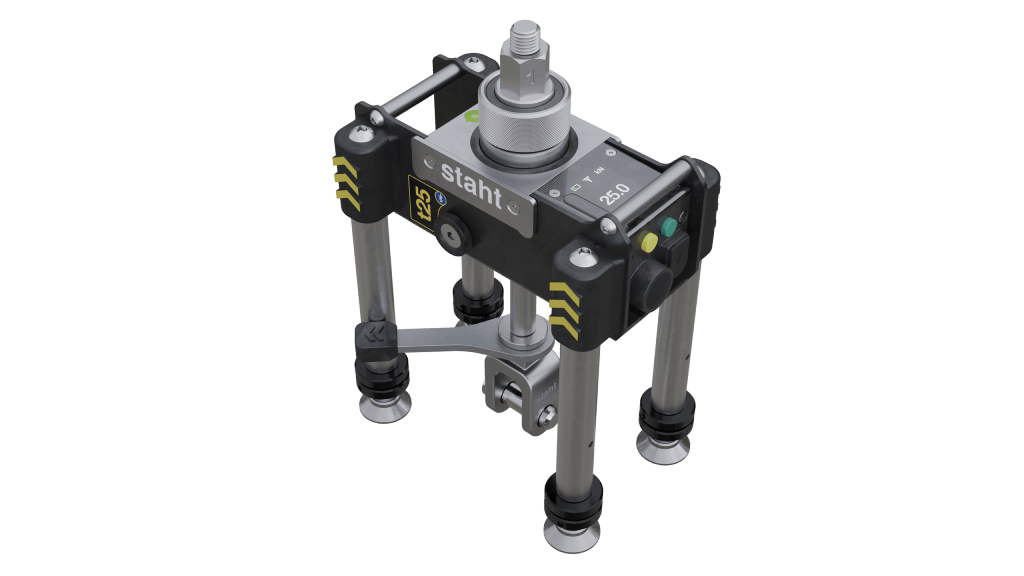

The ultimate hand-held digital pull tester
The Staht Bridge is the industry-leading solution for testing and verifying the performance of construction fixings. Purpose-built to be the lightest and most versatile pull tester on the market, it delivers a maximum pull-out force of 25kN (5,620 lbf) with a 50mm stroke. Whether you are verifying wall ties, anchor bolts or safety fixings, the Bridge provides unmatched digital precision in a compact, portable package.
- Ultra-lightweight
- Compact form factor
- Modular engineering
- Digital precision with Staht Connect
- Built for versatility
Key features
- Ultra-lightweight
Weighing just 2.6kg, it is the lightest tester in its class.
- Compact form factor
Measuring only 230mm x 155mm, it fits easily into tight spaces on-site.
- Modular engineering
Compatible with the t25 load cell, letting you swap between testing frames seamlessly.
- Digital precision with Staht Connect
View live load graphs over Bluetooth and generate instant PDF reports with photos, video and GPS for total traceability.
- Built for versatility
A 125mm internal width, 110mm height-adjustable legs and 360-degree swivel feet handle larger fixtures and uneven surfaces.
Technical specifications
- Maximum pull-out force
- Up to 25kN (5,620 lbf)
- Stroke
- 50mm
- Weight
- 2.6kg
- Dimensions
- 230mm x 155mm
- Internal test width
- 125mm
- Compliance
- Made in Britain · CE & UKCA marked · tests to CFA standards and BS 8539
